The center of gravity of the anchor claw and its base is downward. This unique structural design ensures that the anchor claw always naturally rises when retracting the anchor, and when it touches the ship, it will naturally flip over, making it less likely to damage the hull.
The exterior design is quite exquisite and can fit well with the anchor pocket, making it easy to store on board.

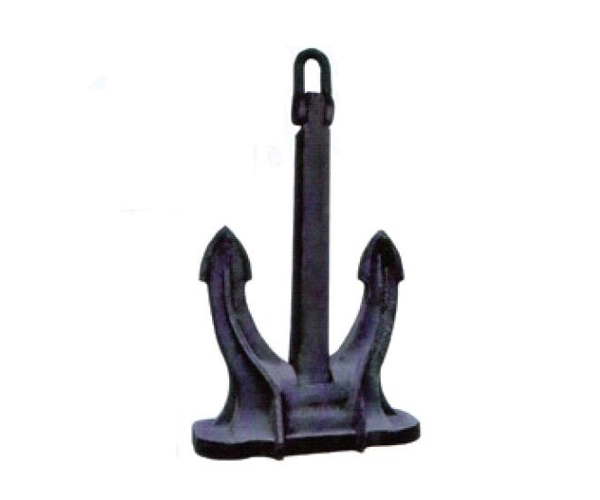

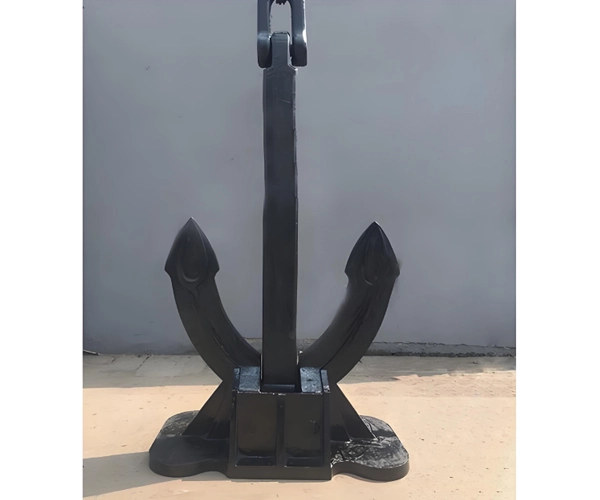

Spek anchor is a commonly stockless anchor equipped with an anchor crown plate and reinforcing ribs,an improved version of the Hall anchor.It is widely used on commercial shipping and cruise vessels.
1. Material: casting steel
2. Nominal Weight: 100kg to 26000kg
3. Certificate: CCS,ABS,LR,GL,DNV,NK,BV,KR,RINA,RS etc.
*More stability- Its smart design makes a seamless connection with the anchor and the bow of the vessel,which offering better stability.
*Optimize fluke design- the fluke can easily turn to the ground,flip over upon touch the hull,without damaging the hull plate
| Nominal Weight (kg) | Dimensions (mm) | |||||
| A | B | C | D | E | F | |
| 56 | 612 | 555 | 170 | 376 | 113 | 298 |
| 100 | 745 | 675 | 200 | 458 | 135 | 364 |
| 135 | 745 | 675 | 205 | 458 | 135 | 364 |
| 180 | 909 | 822 | 252 | 558 | 166 | 442 |
| 225 | 1,010 | 915 | 277 | 623 | 185 | 495 |
| 250 | 1,010 | 915 | 280 | 623 | 185 | 495 |
| 270 | 1,040 | 940 | 288 | 638 | 190 | 508 |
| 300 | 1,075 | 975 | 298 | 660 | 200 | 525 |
| 315 | 1,075 | 975 | 300 | 660 | 200 | 525 |
| 340 | 1,120 | 1,015 | 310 | 690 | 205 | 548 |
| 360 | 1,120 | 1,015 | 313 | 690 | 205 | 548 |
| 428 | 1,213 | 1,098 | 336 | 745 | 222 | 590 |
| 495 | 1,255 | 1,135 | 348 | 770 | 230 | 610 |
| 590 | 1,350 | 1,220 | 375 | 829 | 246 | 658 |
| 675 | 1,412 | 1,278 | 390 | 868 | 257 | 690 |
| 765 | 1,470 | 1,335 | 408 | 906 | 269 | 718 |
| 910 | 1,560 | 1,410 | 430 | 957 | 284 | 760 |
| 970 | 1,592 | 1,445 | 440 | 978 | 292 | 775 |
| 1,080 | 1,650 | 1,495 | 455 | 1,014 | 302 | 805 |
| 1,200 | 1,710 | 1,545 | 470 | 1,050 | 315 | 835 |
| 1,305 | 1,760 | 1,595 | 485 | 1,082 | 323 | 858 |
| 1,361 | 1,782 | 1,615 | 495 | 1,096 | 326 | 870 |
| 1,440 | 1,818 | 1,645 | 505 | 1,118 | 332 | 885 |
| 1,575 | 1,875 | 1,695 | 518 | 1,152 | 343 | 915 |
| 1,710 | 1,925 | 1,745 | 532 | 1,184 | 352 | 940 |
| 1,845 | 1,975 | 1,785 | 546 | 1,215 | 362 | 965 |
| 1,980 | 2,020 | 1,830 | 560 | 1,242 | 370 | 985 |
| 2,100 | 2,065 | 1,865 | 570 | 1,268 | 377 | 1,005 |
| 2,295 | 2,130 | 1,920 | 588 | 1,310 | 385 | 1,035 |
| 2,475 | 2,175 | 1,970 | 602 | 1,340 | 395 | 1,062 |
| 2,655 | 2,225 | 2,018 | 615 | 1,368 | 408 | 1,085 |
| 2,794 | 2,265 | 2,055 | 625 | 1,393 | 415 | 1,105 |
| 3,040 | 2,320 | 2,100 | 640 | 1,424 | 426 | 1,130 |
| 3,550 | 2,455 | 2,225 | 680 | 1,508 | 450 | 1,198 |
| 3,670 | 2,480 | 2,248 | 688 | 1,525 | 455 | 1,210 |
| 3,940 | 2,540 | 2,300 | 705 | 1,562 | 465 | 1,240 |
| 4,500 | 2,655 | 2,405 | 735 | 1,632 | 485 | 1,295 |
| 4,840 | 2,720 | 2,465 | 755 | 1,670 | 500 | 1,330 |
| 5,175 | 2,785 | 2,520 | 770 | 1,710 | 510 | 1,358 |
| 5,610 | 2,858 | 2,590 | 790 | 1,758 | 523 | 1,396 |
| 6,000 | 2,922 | 2,646 | 810 | 1,796 | 535 | 1,426 |
| 6,450 | 2,995 | 2,712 | 830 | 1,840 | 548 | 1,462 |
1.Q:What's your MOQ?
A: We accept 1 set trail order;Our production capacity could meet your large quantity orders;
2.Q:How about the Delivery time?
A:Around 50 days after order confirmation.
3.Q:What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of spek anchor before you pay the balance.
4.Q:What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
5.Q:Do you test all your goods before delivery?
A: Yes, we have 100% test our spek anchor before delivery.
