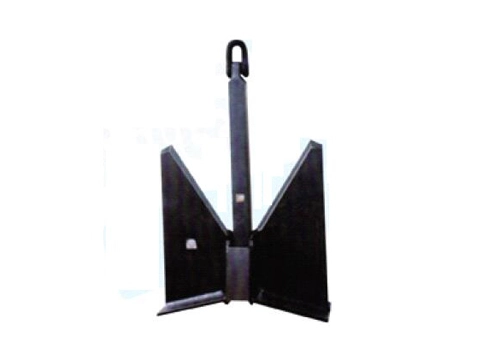

Its shape is similar to a triangle. This shape allows the anchor to grip the seabed well after being thrown into the water. Generally speaking, it has two main gripping parts, similar to the two oblique sides of a triangle. These sloping edges can penetrate into the crevices of sediment or rocks on the seabed, providing stable anchoring force for ships. For example, compared to traditional naval anchors, triangular anchors have a more compact structure and do not have horizontal bars like naval anchors, reducing the risk of being tangled by debris when dragged in water.

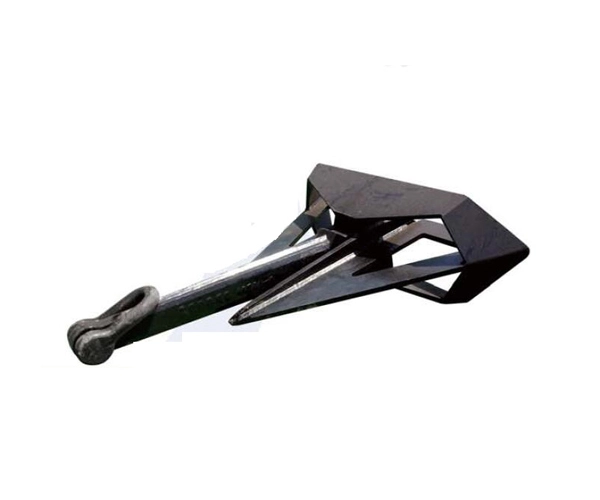

Delta anchor is a high holding power anchor suitable for all types of boats.No need to make pre-arrangements when dropping anchor.A notch is allowed on one side of the plate to facilitate the installation of the shaft.With its open design,it effortlessly enters different soil conditions.It’s famous for its instant setting and ultimate reliability.
1.Material: Stainless steel,aluminum alloy ,steel
2.Weight: 100kg-27500kg
3.Certificate: CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA
*High holding power
*Auto adjusting fluke angle- ensure instant penetration in sand,mud,clay......
Nominal Weight (kg) | Dimensions (mm) | |||||
A | B | C | D | E | F | |
300 | 1,200 | 960 | 1,080 | 457 | 1,380 | 45 |
500 | 1,500 | 1,200 | 1,350 | 571 | 1,725 | 50 |
1,000 | 1,875 | 1,500 | 1,686 | 714 | 2,155 | 62 |
2,000 | 2,363 | 1,890 | 2,124 | 900 | 2,715 | 74 |
3,000 | 2,700 | 2,160 | 2,430 | 1,028 | 3,105 | 90 |
4,000 | 2,975 | 2,380 | 2,676 | 1,133 | 3,420 | 100 |
5,000 | 3,250 | 2,600 | 2,922 | 1,238 | 3,735 | 110 |
7,000 | 3,575 | 2,860 | 3,216 | 1,360 | 4,110 | 117 |
9,000 | 3,950 | 3,160 | 3,555 | 1,504 | 4,543 | 135 |
10,000 | 4,100 | 3,280 | 3,690 | 1,561 | 4,715 | 140 |
12,000 | 4,490 | 3,575 | 4,030 | 1,695 | 5,320 | 145 |
15,000 | 4,845 | 3,875 | 4,355 | 1,830 | 5,735 | 150 |
18,000 | 5,140 | 4,080 | 4,610 | 1,940 | 6,080 | 160 |
20,000 | 5,330 | 4,260 | 4,790 | 2,010 | 6,310 | 170 |
25,000 | 5,740 | 4,590 | 5,106 | 2,165 | 6,795 | 180 |
27,500 | 5,980 | 4,785 | 5,385 | 2,245 | 7,095 | 180 |
1.Q:What's your MOQ?
A: We accept 1 set trail order;Our production capacity could meet your large quantity orders;
2.Q:How about the Delivery time?
A:Around 50 days after order confirmation.
3.Q:What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of delta anchor before you pay the balance.
4. Q:What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
5.Q:Do you test all your goods before delivery?
A: Yes, we have 100% test our delta anchor before delivery.
