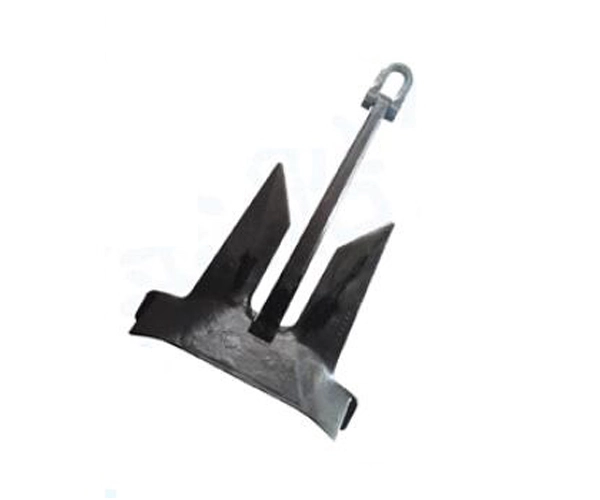

AC-14 HPP anchor is a type of ship anchor. It belongs to a type of high grip anchor, which has important applications in the field of navigation. Its design purpose is to provide reliable mooring force for ships, ensuring that they can safely dock under various sea conditions and sediment conditions.
The AC-14 anchor is a high holding power stockless anchor with rotating flukes.It provides exceptional grip,designed to exceed standard holding power requirements.It has been widely used on various large transport vessels and ships worldwide.
1. Material: Casting Steel
2. Nominal Weight: 56kg to 25000kg
3. Certificate: CCS,ABS,LR,GL,DNV,NK,BV,KR,RINA,RS etc.
*Excellent weight to performance ratio- The grip force is at least twice that of traditional anchor of same weight.
*Optimize fluke design- ensure fast penetration and deep setting in sand,mud,clay,and mixed seabeds.
| Nominal Weight (kg) | Dimensions (mm) | |||||
| A | B | C | D | E | F | |
| 56 | 612 | 555 | 170 | 376 | 113 | 298 |
| 100 | 745 | 675 | 200 | 458 | 135 | 364 |
| 135 | 745 | 675 | 205 | 458 | 135 | 364 |
| 180 | 909 | 822 | 252 | 558 | 166 | 442 |
| 225 | 1,010 | 915 | 277 | 623 | 185 | 495 |
| 250 | 1,010 | 915 | 280 | 623 | 185 | 495 |
| 270 | 1,040 | 940 | 288 | 638 | 190 | 508 |
| 300 | 1,075 | 975 | 298 | 660 | 200 | 525 |
| 315 | 1,075 | 975 | 300 | 660 | 200 | 525 |
| 340 | 1,120 | 1,015 | 310 | 690 | 205 | 548 |
| 360 | 1,120 | 1,015 | 313 | 690 | 205 | 548 |
| 428 | 1,213 | 1,098 | 336 | 745 | 222 | 590 |
| 495 | 1,255 | 1,135 | 348 | 770 | 230 | 610 |
| 590 | 1,350 | 1,220 | 375 | 829 | 246 | 658 |
| 675 | 1,412 | 1,278 | 390 | 868 | 257 | 690 |
| 765 | 1,470 | 1,335 | 408 | 906 | 269 | 718 |
| 910 | 1,560 | 1,410 | 430 | 957 | 284 | 760 |
| 970 | 1,592 | 1,445 | 440 | 978 | 292 | 775 |
| 1,080 | 1,650 | 1,495 | 455 | 1,014 | 302 | 805 |
| 1,200 | 1,710 | 1,545 | 470 | 1,050 | 315 | 835 |
| 1,305 | 1,760 | 1,595 | 485 | 1,082 | 323 | 858 |
| 1,361 | 1,782 | 1,615 | 495 | 1,096 | 326 | 870 |
| 1,440 | 1,818 | 1,645 | 505 | 1,118 | 332 | 885 |
| 1,575 | 1,875 | 1,695 | 518 | 1,152 | 343 | 915 |
| 1,710 | 1,925 | 1,745 | 532 | 1,184 | 352 | 940 |
| 1,845 | 1,975 | 1,785 | 546 | 1,215 | 362 | 965 |
| 1,980 | 2,020 | 1,830 | 560 | 1,242 | 370 | 985 |
| 2,100 | 2,065 | 1,865 | 570 | 1,268 | 377 | 1,005 |
| 2,295 | 2,130 | 1,920 | 588 | 1,310 | 385 | 1,035 |
| 2,475 | 2,175 | 1,970 | 602 | 1,340 | 395 | 1,062 |
| 2,655 | 2,225 | 2,018 | 615 | 1,368 | 408 | 1,085 |
| 2,794 | 2,265 | 2,055 | 625 | 1,393 | 415 | 1,105 |
| 3,040 | 2,320 | 2,100 | 640 | 1,424 | 426 | 1,130 |
| 3,550 | 2,455 | 2,225 | 680 | 1,508 | 450 | 1,198 |
| 3,670 | 2,480 | 2,248 | 688 | 1,525 | 455 | 1,210 |
| 3,940 | 2,540 | 2,300 | 705 | 1,562 | 465 | 1,240 |
| 4,500 | 2,655 | 2,405 | 735 | 1,632 | 485 | 1,295 |
| 4,840 | 2,720 | 2,465 | 755 | 1,670 | 500 | 1,330 |
| 5,175 | 2,785 | 2,520 | 770 | 1,710 | 510 | 1,358 |
| 5,610 | 2,858 | 2,590 | 790 | 1,758 | 523 | 1,396 |
| 6,000 | 2,922 | 2,646 | 810 | 1,796 | 535 | 1,426 |
| 6,450 | 2,995 | 2,712 | 830 | 1,840 | 548 | 1,462 |
1.Q:What's your MOQ?
A: We accept 1 set trail order;Our production capacity could meet your large quantity orders;
2.Q:How about the Delivery time?
A:Around 50 days after order confirmation.
3.Q:What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of AC-14 HHP anchor before you pay the balance.
4.Q:What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
5.Q:Do you test all your goods before delivery?
A: Yes, we have 100% test our AC-14 HHP anchor before delivery.
