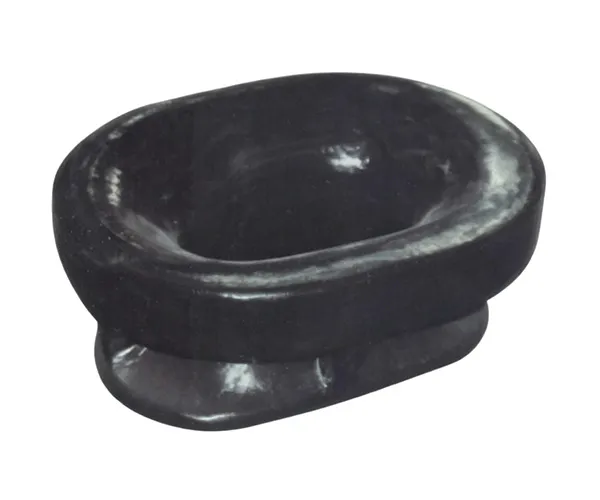

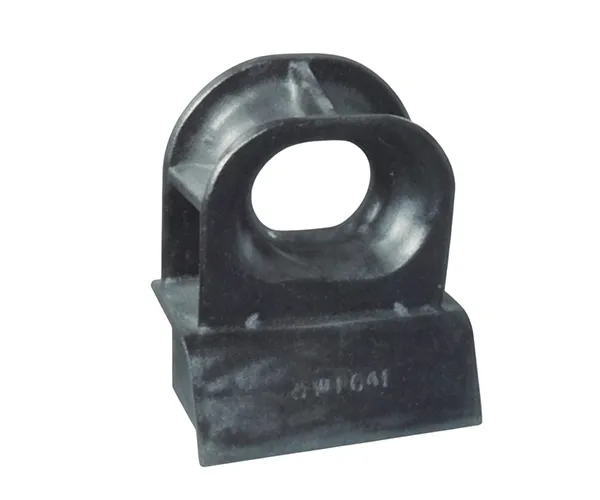

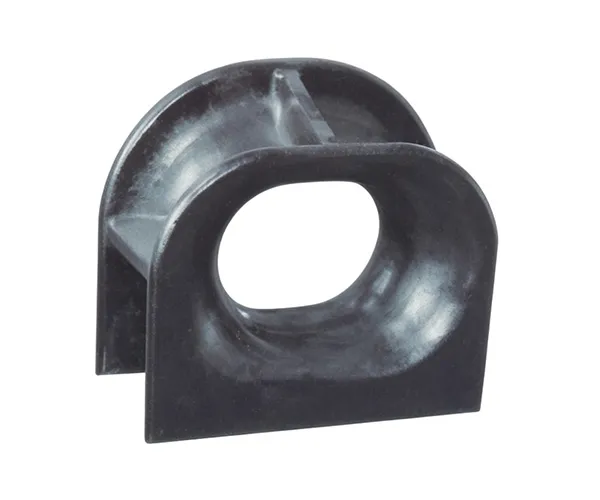

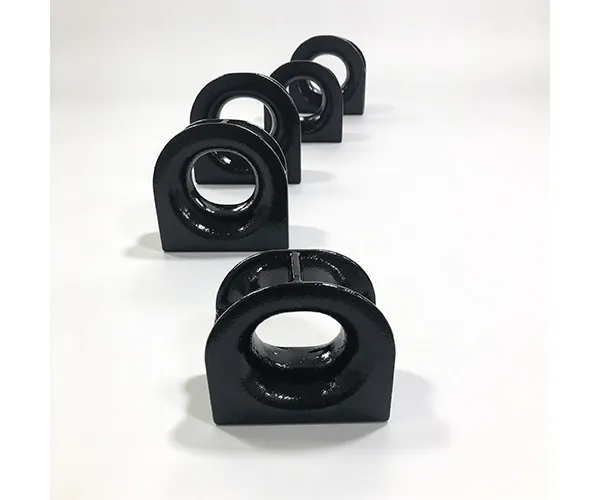

Panama Mooring Chock is a heavy-duty marine deck fitting designed for guiding and securing mooring ropes or wires during ship berthing and mooring operations. It is widely installed on large vessels such as bulk carriers, container ships, tankers, offshore vessels, and other commercial ships.
The closed-type structure helps prevent mooring lines from jumping out of the chock while reducing rope wear through smooth curved surfaces. Panama chocks are commonly manufactured according to marine standards such as JIS F2017, ISO, DIN and other classification requirements.
| Application | ship mooring, towing, deck equipment |
| Material | cast steel, carbon steel |
| Material grades | ZG230‑400, ZG230‑450 or equivalent |
| Mounting type | deck mounted, bulwark mounted |
| Surface treatment | epoxy coating, anti‑corrosion painting, customized finish |
| Certification | ABS, BV, DNV, CCS available upon request |
Heavy-duty design for ship mooring and towing applications
Smooth rounded rope contact surface to minimize abrasion
High strength cast steel construction for harsh marine environments
Available in deck mounted and bulwark mounted types
Suitable for wire ropes and synthetic mooring ropes
Custom dimensions and load capacities available
Surface treatment options: primer coating, epoxy coating, hot-dip galvanizing

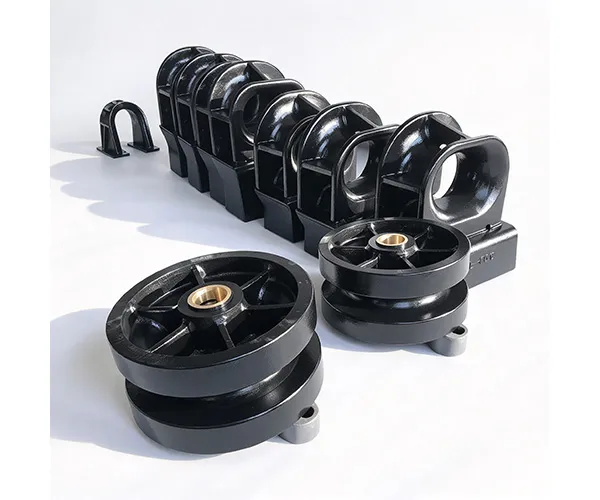

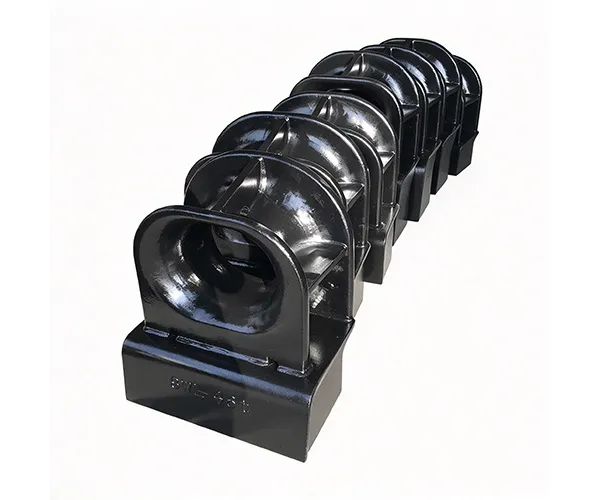

Marine chocks stacked on base frame.Fully wrapped with film and strapping bands for anti-dust, anti-moisture and anti-scratch protection for shipment.
We provide Panama Mooring Chock with strict quality control, accurate dimensions, and customized solutions for shipyards, ship owners, and marine equipment distributors worldwide.
Contact us for drawings, specifications, quotations, and customized Panama Mooring Chock solutions.
