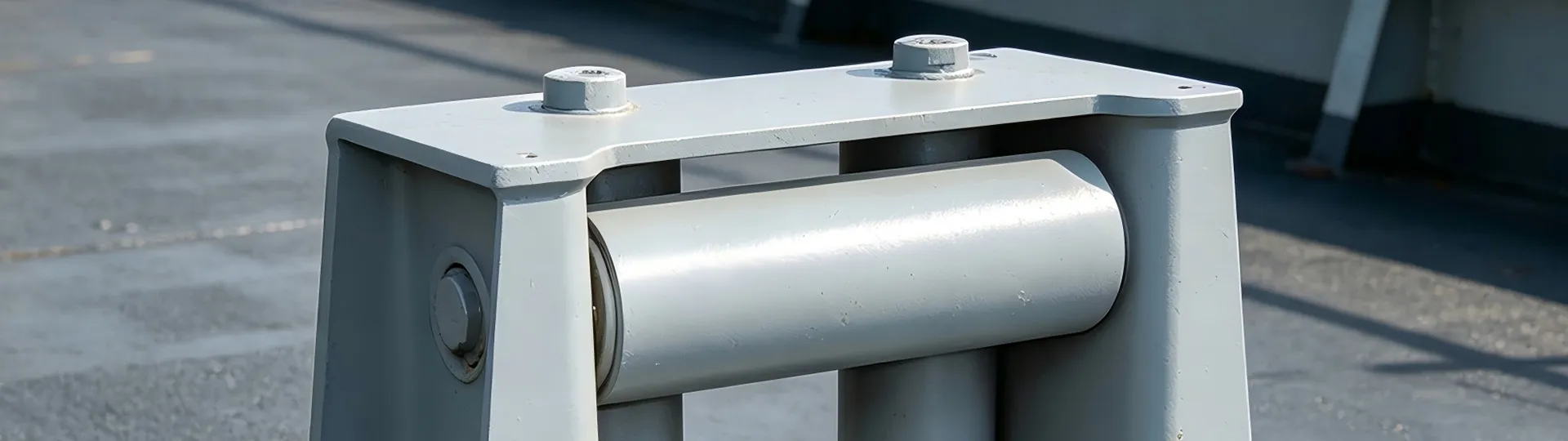

Roller fairlead, also known as deck-end roller fairlead, is a core mooring deck fitting widely fitted on vessel deck edges or bulwarks. Unlike fixed-type chock which creates sliding friction, it adopts rotating roller assemblies. When mooring ropes or steel wires pass through, the rollers spin together with lines, converting sliding friction into rolling friction. It guides mooring lines to change direction smoothly under heavy tension, minimizes rope abrasion and heat generation, and transfers dynamic mooring loads to reinforced hull structures during berthing, mooring and towing operations.
When vessels perform berthing, mooring and towing operations, mooring ropes or steel wires frequently change directions under high tension. Roller fairlead (also known as deck-end roller fairlead) is specially designed marine mooring hardware fitted on deck or bulwark. Equipped with rotating roller assemblies, it guides mooring lines smoothly while greatly lowering friction resistance between hawser and fitting surface. It transfers dynamic mooring loads to hull structure and protects ropes from severe abrasion during mooring-line pulling-in and paying-out.
Maximum safe working load (SWL) matching vessel mooring arrangement
Maximum allowable mooring-line diameter (synthetic rope or steel wire rope)
Hull installation condition: deck-mounted or bulwark-mounted structure
Local marine environment: seawater corrosion, frequent wave splash
Classification society certification requirements
